Product Description

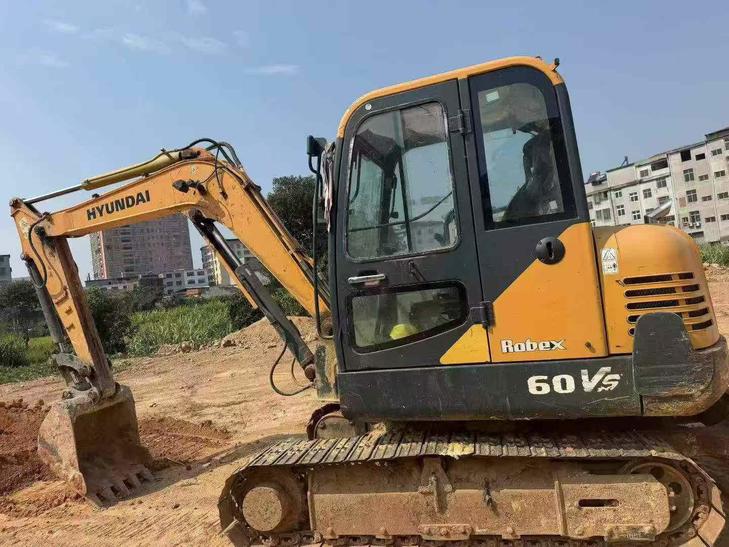

This 2018 Hyundai R 60VS mini excavator is available from Jiangxi, China. The machine comes with comprehensive photo documentation and operational video for buyer verification. As a compact excavator from Hyundai's VS series, this unit is engineered for versatility in confined work environments while maintaining robust digging performance.
- Year of Manufacture: 2018
- Model: Hyundai R 60VS
- Location: Jiangxi Province, China
- Documentation: Detailed images and video available
- Configuration: Zero tail swing design for tight space operation
The R 60VS combines Hyundai's reliable hydraulic system with a compact footprint suitable for urban construction, landscaping, and utility work. Visual inspection materials are provided to assess current machine condition. Serious buyers are encouraged to review documentation and arrange inspection promptly.
| Specifications | Value |
|---|---|
| No. | 1168973 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 |
| Rated power (kw/rpm) | 54.3 / 2400 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 (3.86 ") x 110 (4.33 "). |
| Maximum torque (N.m) | 20.6 / 1800 |
| Displacement (L) | 3.319 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 4.0 / 2.2 |
| Maximum flow of main pump (l/min) | 2 x 55 |
| Traveling Hydraulic Circuit (Mpa) | 220 |
| Rotary Hydraulic Circuit (Mpa) | 220 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 220 |
| Pilot Oil Circuit (MPa) | 30 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 x 50 x 660 (3.1 "x 26.0") |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-90×55×850 (3.5 "×33.5") |
| Boom cylinders - Number × diameter × stroke (mm) | 1-110×65×715 (4.3 "×28.1") |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 120 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Counterweight ground clearance (mm) | 690 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 1830 |
| Total track length (mm) | 2530 |
| Track gauge (mm) | 1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1990 |
| Maximum height at minimum turning radius (mm) | 2350 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Maximum excavation radius of stop surface (mm) | 6010 |
| Maximum effective digging depth (mm) | 3420 |
